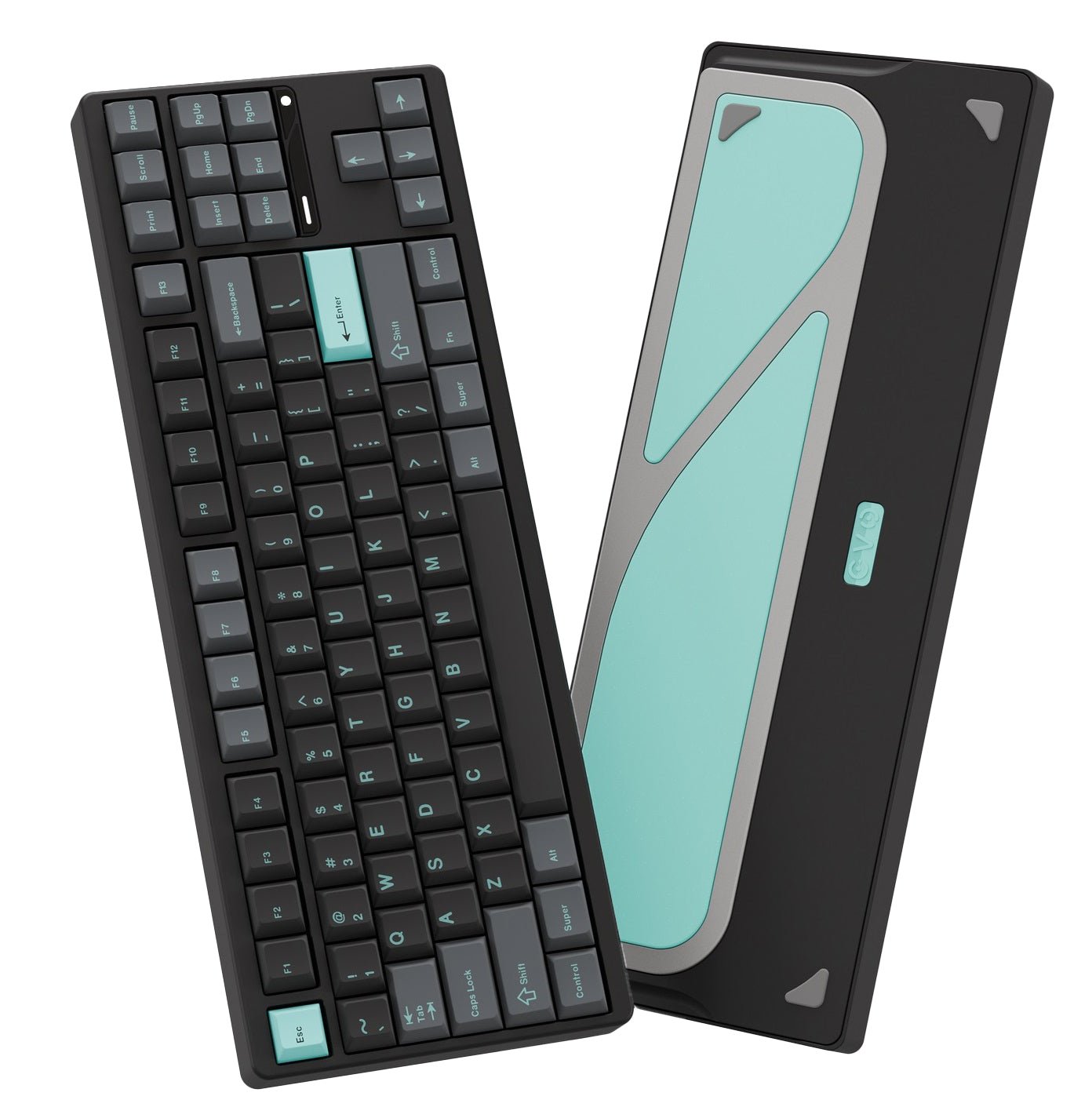

Evoworks Evo80 Keyboard

CNC aluminum case with ball catch design and magnetic connectors
Butterfly leaf spring mechanism with specially designed gasket
Connect 3 ways- wired with USB-C cable or wirelessly with Bluetooth and 2.4 GHz
Programmable with VIA
Hotswap PCB with per-key RGB and Polypropylene or FR4 plate
1000Hz polling rate in wired and 2.4GHz mode
2* 4000mAh batteries
Five layers of poron foams with a double-layer of cotton bottom foam for enhanced acoustics
Dye Sub PBT keycaps
TKL form factor with F13 key

Each assembled Evo80 keyboard includes:
– CNC aluminum case
– Hotswap PCB
– daughterboard and magnetic connector
– switch plate
– Switches with spares
– 1* set of keycaps in color to match the case
– 1* acoustic package (PET sheet, IXPE sheet, plate foam, 2* Poron case foam)
– stabilizers
– 6* butterfly leaf springs
– gaskets with spares
– 4* silicone corner protectors
– 4* rubber feet
– 2* 4000mAh batteries
– carrying case
– USB-C cable
– 2.4gHz dongle
– Mac add-on kit
– spare screws
– spare leaf spring dampeners
– spare case silicone dampeners

Please note that all photos are for reference only; actual color may vary.

Download Firmware for Windows Below
Main board
Dongle

Download JSON for VIA Below
EVO80_0924
User Manual

SizeTenkeyless

SeriesEvo80

Key Count88 keys

Logical LayoutUS QWERTY

Physical LayoutANSI

USB Key RolloverNKRO

Switch Mount TypePlate mount

InterfaceWireless, USB-C

Windows CompatibleYes

Mac CompatibleYes

Linux CompatibleYes

BacklightingRGB / All LED

HotswapYes

VIA CompatibleYes

Switch DirectionSouth Facing

Keyboard Cord Connection (Keyboard Side)USB-C

Keyboard Cord Connection (Device Side)USB-A

Anodized Ink FR4SS-EVO80-FR4-AI

Anodized Ink PPSS-EVO80-PP-AI

Anodized Nimbus FR4SS-EVO80-FR4-AN

Anodized Nimbus PPSS-EVO80-PP-AN

Anodized Tyrian FR4SS-EVO80-FR4-AT

Anodized Tyrian PPSS-EVO80-PP-AT

Anodized Sand Gold FR4SS-EVO80-FR4-ASG

Anodized Sand Gold PPSS-EVO80-PP-ASG

Anodized Scarlet FR4SS-EVO80-FR4-AS

Anodized Scarlet PPSS-EVO80-PP-AS

Spray-Coated Spark FR4SS-EVO80-FR4-SCS

Spray-Coated Spark PPSS-EVO80-PP-SCS

Spray-Coated Cream FR4SS-EVO80-FR4-SCC

Spray-Coated Cream PPSS-EVO80-PP-SCC

Spray-Coated Butter Y…SS-EVO80-PP-SCBY

Spray-Coated Baby Pin…SS-EVO80-PP-SCBP

Spray-Coated Iceberg FR4SS-EVO80-FR4-SCIB

Spray-Coated Iceberg PPSS-EVO80-PP-SCIB
